Mole in CBN Tipo Raceway

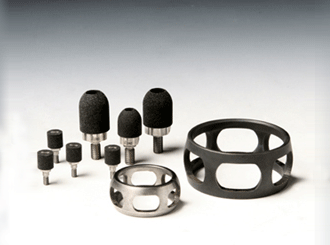

This type of wheel is suitable for inner rettifica velocity ball joint cage's inner and outer race of Auto drive spindle. It can equipe with various high precision NC race rettifica machines.





FEPA Code D T H R
  14.58 22 5 11.54
  17.6 22 8 8.8
  19.2 22 8 12.77
  19.5 25 8 16.4
  21.17 25 10 14.88
  22.6 22 10 14.17
Special purpose wheel can be available upon request

Order example:

PEPA code D T H R Abrasive Grain size Bond Concent. Grade

Vitrified bond

14.58 22 5 11.54 D 120 V 150 N
